Tree - Kth Smallest Element in a BST

All diagrams presented herein are original creations, meticulously designed to enhance comprehension and recall. Crafting these aids required considerable effort, and I kindly request attribution if this content is reused elsewhere.

Difficulty : Easy

InOrder Traversal

Problem

Given the root of a binary search tree, and an integer k, return the kth smallest value (1-indexed) of all the values of the nodes in the tree.

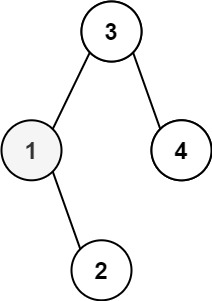

Example 1:

Input: root = [3,1,4,null,2], k = 1
Output: 1

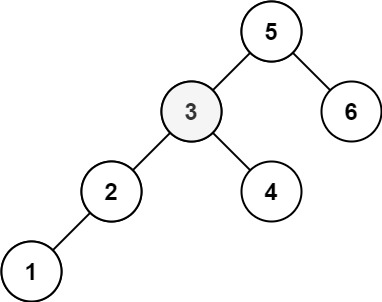

Example 2:

Input: root = [5,3,6,2,4,null,null,1], k = 3
Output: 3

Solution

This is a typical problem of InOrder traversal. We can use either recursion or stack to solve this iteratively.

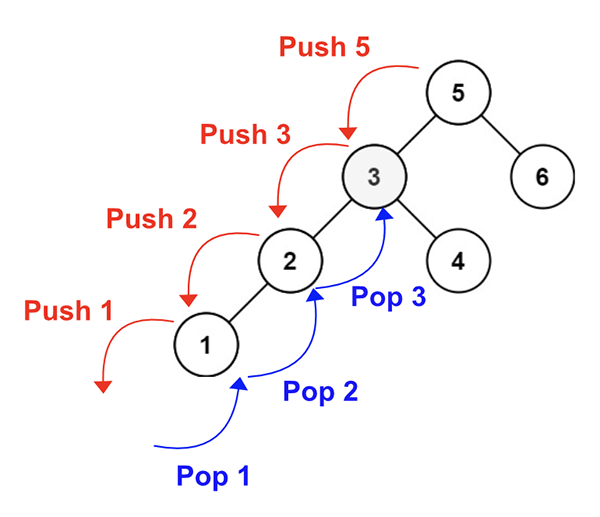

InOrder Traversal using Stack

Here is the base code for InOrder Traversal. I have added code comments for better understanding.

# List in python can be used as stack
stack = []

# while either root or the stack is not None or Empty
while root or stack:
  # Keep traversing the left nodes
  # and push the root node to stack
	while root:
    stack.append(root)
    root=root.left

  # root node is now None
  # but stack may not be empty

  # fetch the last node from stack
  root = stack.pop()

  # since the left node was already
  # visited for this root
  # Now visit right node and
  # again keep traversing left
  # of that right node until None

  root = root.right


Solve using InOrder Traversal with Stack

Now This problem can be easily solving by decrementing k whenever a node is popped from the stack. Once k==0 return the val of the popped root node.

...
root = stack.pop()
# decrment k
k-=1

if k == 0 :
  return root.val

...

InOrder Traversal with Recursion

The recursion code is surprisingly shorter. All we do here is return when reached the None else keep traversing the left nodes. Once all the left node of the root have been traversed, then traverse the right node. The logic is exactly same as using stack.

Here the function call stack is used.

def inorder(root):
  if not root:
    return
  inorder(root.left)
  inorder(root.right)

inorder(root)

Solve using InOrder Traversal with Recursion

Now we can easily modify the above code to solve this problem.

# Create an outer variable to hold the value
smallest = None

def inorder(root):
  # defind k and smallest as nonlocal
  # so that we can update them inside this
  # function instead of re-initializing them
  # in local scope

  nonlocal k
  nonlocal smallest

  if not root:
    return

  inorder(root.left)
  # Same code as we have in the
  # iterative solution using stack
  k -= 1
  if k==0:
    smallest = root.val

	inorder(root.right)

inorder(root)
return smallest


Final Code

Using InOrder Traversal with Stack

Here is the full code.

# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right

def kth_smallest(root:TreeNode, k):
  stack =[]

  while stack or root:
    while root:
      stack.append(root)
      root=root.left
    root = stack.pop()
    k-=1
    if k == 0:
      return root.val
    root = root.right()


Using InOrder Traversal with Recursion

Here is the full code.

def kth_smallest(root, k):
    smallest = None

    def inorder(root):
        nonlocal smallest
        nonlocal k

        if not root:
            return
        inorder(root.left)
        k -= 1
        if k == 0:
            smallest = root.val

        inorder(root.right)

    inorder(root)
    return smallest
